前端大文件上传 - 总结（Vue3 + hook + Web Worker实现，通过多个Worker线程大大提高Hash计算的速度）-CSDN博客

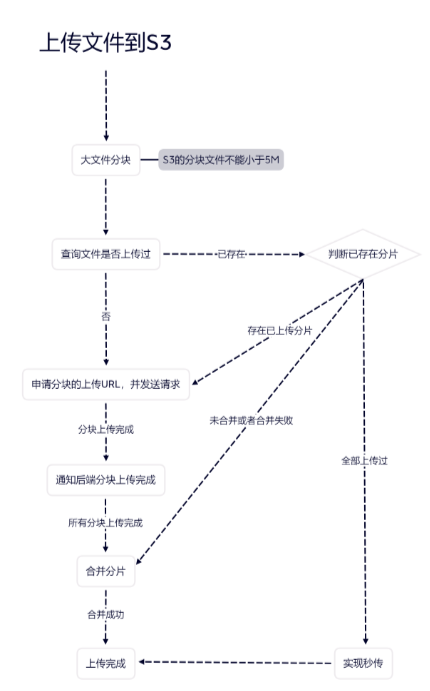

前端大文件上传 -- 上传文件到S3或本地服务器_前端直接上传文件到s3-CSDN博客
其他
vue3-简单切片上传前后端代码
https://github.com/kethonC/upload-bigfile

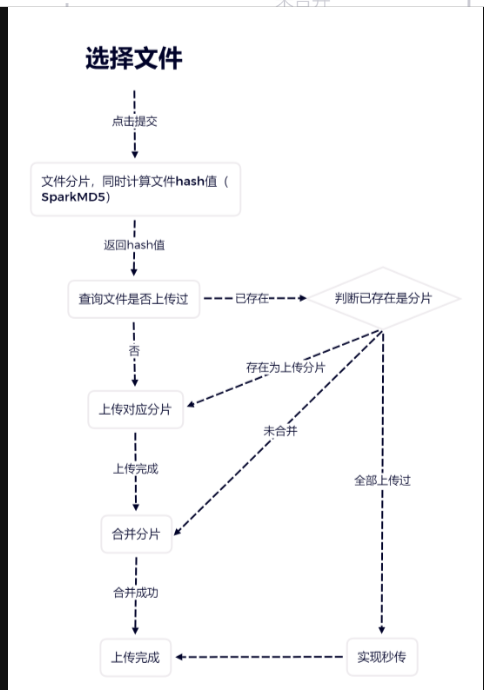

vue3 -大文件上传,切片上传,秒传&断点续传 前端vue3+vite
https://github.com/heyu3913/BigFileUpLoad
项目进入,分别进入client,server,npm i ; npm run dev
BigFileUpLoad
client/App.vue
<script setup lang="ts">
import { ref } from 'vue'
import SparkMD5 from 'spark-md5'
// 1MB = 1024KB = 1024 * 1024B
const CHUNK_SIZE = 1024 * 1024
const fileName = ref<string>('')
const fileSize = ref<number>(0)
const fileHash = ref<string>('')
// 文件分片
const createFileChunks = (file: File) => {
let cur = 0
const chunks = []
while(cur < file.size) {
chunks.push(file.slice(cur, cur + CHUNK_SIZE))
cur += CHUNK_SIZE
}
return chunks
}
// 计算hash值
const calcuteHash = (chunks: Array<Blob>) => {
return new Promise(resolve => {
const targets: Blob[] = []
const spark = new SparkMD5.ArrayBuffer()
// 1. 第一个和最后一个切片全部参与计算
// 2. 中间的切片只有前两个字节、中间两个字节、后面两个字节参与计算
chunks.forEach((chunk, index) => {
if (index === 0 || index === chunks.length - 1) {
targets.push(chunk)
} else {
targets.push(chunk.slice(0, 2)) // 前两个字节
targets.push(chunk.slice(CHUNK_SIZE / 2, CHUNK_SIZE / 2 + 2)) // 中间两个字节
targets.push(chunk.slice(CHUNK_SIZE - 2, CHUNK_SIZE)) // 后面两个字节
}
})
const fileReader = new FileReader();
fileReader.readAsArrayBuffer(new Blob(targets))
fileReader.onload = (e) => {
spark.append((e.target as FileReader).result);
resolve(spark.end());
}
})
}
// 合并请求
const mergeRequest = () => {
fetch('http://localhost:3000/merge', {
method: 'POST',
headers: {
'Content-Type': 'application/json'
},
body: JSON.stringify({
fileHash: fileHash.value,
fileName: fileName.value,
size: CHUNK_SIZE
})
}).then(() => {
alert('合并成功！')
})
}
// 分片上传
const uploadChunks = async (chunks: Array<Blob>, existsChunks: string[]) => {
const data = chunks.map((chunk, index) => {
return {
fileName: fileName.value,
fileHash: fileHash.value,
chunkHash: fileHash.value + '-' + index,
chunk: chunk
}
})
const formDatas = data
.filter((item) => !existsChunks.includes(item.chunkHash))// 过滤掉已经上传过的
.map((item) => {// 把每一个分片转换成formdata
const formData = new FormData()
formData.append('fileName', item.fileName)
formData.append('fileHash', item.fileHash)
formData.append('chunkHash', item.chunkHash)
formData.append('chunk', item.chunk)
return formData
})
// [1,2,3,4,6,7]
const max = 6 // 最大并行请求数
const taskPool: any = [] // 请求队列
let index = 0
while(index < formDatas.length) {
const task = fetch('http://localhost:3000/upload', {
method: 'POST',
body: formDatas[index]
})
task.then(() => {
// 执行完后把当前任务从任务队列中删除
taskPool.splice(taskPool.findIndex((item: any) => item === task))
})
taskPool.push(task)// 加入任务队列
if (taskPool.length === max) {
await Promise.race(taskPool)// 等待任务队列中任意一个任务完成
}
index ++
}
await Promise.all(taskPool)
// 所有分片上传完成后，通知服务器可以合并了
mergeRequest()
}
/**
* 验证该文件是否需要上传，文件通过hash生成唯一，改名后也是不需要再上传的，也就相当于秒传
* /
const verifyUpload = async () => {
return fetch('http://127.0.0.1:3000/verify', {
method: 'POST',
headers: {
'Content-Type': 'application/json',
},
body: JSON.stringify({
fileName: fileName.value,
fileHash: fileHash.value
})
})
.then((response) => response.json())
.then((data) => {
return data; // data中包含对应的表示服务器上有没有该文件的查询结果
});
}
const handleUpload = async (e: Event) => {
// console.log((e.target as HTMLInputElement).files); // 伪数组
// 读取文件
const files = (e.target as HTMLInputElement).files
if (!files) return
// console.log(files[0]);
fileName.value = files[0].name
fileSize.value = files[0].size
// 文件分片
const chunks = createFileChunks(files[0])
// 计算hash值
const hash = await calcuteHash(chunks)
fileHash.value = hash as string
// console.log(hash);
// 校验是否需要上传
const { data } = await verifyUpload()
console.log(data);
if (!data.shouldUpload) {
alert('秒传成功')
return;
}
// 分片上传
uploadChunks(chunks, data.existsChunks)// data.existsChunks表示已经上传过的分片
}
</script>
<template>
<h1>大文件上传</h1>
<input @change="handleUpload" type="file">
</template>
<style scoped>
</style>
server/index.js
const express = require('express');
const path = require('path');
const multiparty = require('multiparty');
const fse = require('fs-extra');
const cors = require("cors");
const bodyParser = require('body-parser');
const UPLOAD_DIR = path.resolve(__dirname, 'uploads')
const app = express();
// 提取文件后缀名
const extractExt = filename => {
return filename.slice(filename.lastIndexOf('.'), filename.length)
}
app.use(bodyParser.json());
app.use(cors());
app.post('/upload', function (req, res) {
const form = new multiparty.Form()
form.parse(req, async (err, fields, files) => {
const fileHash = fields['fileHash'][0]
const chunkHash = fields['chunkHash'][0]
// 临时存放切片的文件夹
const chunkDir = path.resolve(UPLOAD_DIR, fileHash)
// 如果目录不存在，则创建一个新的
if (!fse.existsSync(chunkDir)) {
await fse.mkdirs(chunkDir)
}
// 如果存在，将所有的切片放到对应的目录里面
const oldPath = files['chunk'][0]['path']
await fse.move(oldPath, path.resolve(chunkDir, chunkHash))
res.status(200).json({
ok: true,
msg: '上传成功'
})
})
})
app.post('/merge', async function(req, res) {
const { fileHash, fileName, size } = req.body
// console.log(fileHash);
// console.log(fileName);
const filePath = path.resolve(UPLOAD_DIR, fileHash + extractExt(fileName))
const chunkDir = path.resolve(UPLOAD_DIR, fileHash)
if(fse.existsSync(filePath)) {
res.status(200).json({
ok: true,
msg: '合并成功'
})
return;
}
if (!fse.existsSync(chunkDir)) {
res.status(410).json({
ok: true,
msg: '合并失败，请重新上传'
})
return;
}
const allChunks = await fse.readdir(chunkDir)
allChunks.sort((a, b) => {
return a.split('-')[1] - b.split('-')[1]
})
// console.log(filePath);
const list = allChunks.map((chunkPath, index) => {
return new Promise(resolve => {
const readSream = fse.createReadStream(path.resolve(chunkDir, chunkPath))
const writeSream = fse.createWriteStream(filePath, {
start: index * size,
end: (index + 1) * size
})
readSream.on('end', async () => {
await fse.unlink(path.resolve(chunkDir, chunkPath))
resolve()
})
readSream.pipe(writeSream)
})
})
await Promise.all(list)
fse.rmdirSync(chunkDir)
res.status(200).json({
ok: true,
msg: '合并成功'
})
})
app.post('/verify', async function (req, res) {
const { fileHash, fileName } = req.body
const filePath = path.resolve(UPLOAD_DIR, fileHash + extractExt(fileName))
const chunkDir = path.resolve(UPLOAD_DIR, fileHash)
let allChunks = []
// 拿到之前已经上传过的分片
if (fse.existsSync(chunkDir)) {
allChunks = await fse.readdir(chunkDir)
}
if (fse.existsSync(filePath)) {
res.status(200).json({
ok: true,
data: {
shouldUpload: false
}
})
} else {
res.status(200).json({
ok: true,
data: {
shouldUpload: true,
existsChunks: allChunks
}
})
}
})
app.listen(3000, () => {
console.log('Server is running on port 3000');
});
大文件上传
大文件上传 -分片,worker线程
Hooks封装
src/workers/cutFile.js
// 大文件切片上传，worker.js
import SparkMD5 from 'spark-md5';
const DefaultChunkSize = 1024 * 1024 * 50; // 50MB
// const DefaultChunkSize = 1024 * 1024 * 1; // 1MB
self.onmessage = (e) => {// 接收主线程传递过来的参数
const { file, chunkSize = DefaultChunkSize } = e.data;// 获取文件和切片大小
// 获取文件切片方法
let blobSlice = File.prototype.slice || File.prototype.mozSlice || File.prototype.webkitSlice,
chunks = Math.ceil(file.size / chunkSize),// 计算切片数量
currentChunk = 0,// 当前切片索引
spark = new SparkMD5.ArrayBuffer(),// 创建sparkMD5对象
fileChunkHashList = [],// 存储切片的hash值
fileChunkList = [],// 存储切片
fileReader = new FileReader();// 创建文件读取对象
loadNext();// 开始读取文件
function loadNext() {// 读取下一块
let start = currentChunk * chunkSize,// 起始位置
// 结束位置，如果当前切片索引加1等于切片数量，则结束位置为文件大小，否则为当前切片索引加1乘以切片大小
end = ((start + chunkSize) >= file.size) ? file.size : start + chunkSize;
// 调用slice方法获取切片
let chunk = blobSlice.call(file, start, end);
// 将切片添加到切片列表中
fileChunkList.push(chunk);
fileReader.readAsArrayBuffer(chunk);// 读取切片
}
// 计算切片的hash值
function getChunkHash(e) {// 获取切片的hash值
const chunkSpark = new SparkMD5.ArrayBuffer()// 创建sparkMD5对象;
chunkSpark.append(e.target.result);// 将切片添加到sparkMD5对象中
fileChunkHashList.push(chunkSpark.end());// 将切片的hash值添加到切片hash值列表中
}
// 处理每一块的分片
fileReader.onload = function (e) {// 读取成功
// 计算分片的hash值
spark.append(e.target.result); // Append array buffer
// 计算当前切片索引
currentChunk++;
// 计算当前切片的hash值
getChunkHash(e)
if (currentChunk < chunks) {// 如果当前切片索引小于切片数量，则继续读取下一块
loadNext();// 读取下一块
} else {
// 计算完成后，返回结果
self.postMessage({// 发送消息给主线程
fileMd5: spark.end(),// 文件hash值
fileChunkList,// 文件切片列表
fileChunkHashList,// 文件切片hash值列表
});
fileReader.abort();// 关闭文件读取对象
fileReader = null;// 清空文件读取对象
}
}
// 读取失败
fileReader.onerror = function () {
self.postMessage({// 发送消息给主线程
error: 'oops, something went wrong.'
});
}
};
//这里通过 hook 封装了这一块代码。代码中并没有处理文件上传完成，
//但没有发起合并请求的情况，因为后端没返回这种情况，所以这里没写；建议与后端进行沟通要求考虑全部情况。
import request from '@/utils/request'
import modal from '@/plugins/modal'
import { mapLimit } from 'async'
import { useI18n } from "vue-i18n"
const DefaultChunkSize = 1024 * 1024 * 50; // 50MB
// 上传文件
//uploadUrl:上传地址，checkFileFn:检查文件是否已上传，mergeFileFn:合并文件，callback:回调函数
const useCutFile = ({ uploadUrl, checkFileFn, mergeFileFn, callback }) => {
const store = useStore();//获取store
const { t } = useI18n()//获取语言包
const file = ref(null)//上传文件
const fileName = computed(() => file.value?.name || '')//文件名
const fileSize = computed(() => file.value?.size || 0)//文件大小
const fileMd5 = ref('')//文件md5
const fileChunkList = ref([])//文件切片列表
const fileChunkHashList = ref([])//文件切片hash列表
const chunkTotal = ref(0)//切片总数
// 上传id
const uploadId = ref('')
// 上传进度
let uploadProgress = 0
// 每一个分片已上传的大小
let chunkUploadedSize = {}
// 断点续传时已上传的大小
let uploadedSize = 0
// 监听上传文件弹框的文件改变
async function handleUploadChange(fileObj) {
file.value = fileObj
}
// 开始处理文件分块
async function handleCutFile() {//处理文件分块
const worker = new Worker(new URL('@/workers/cutFile.js', import.meta.url), {//创建worker
type: 'module',//使用模块方式加载
})
// 文件切块的过程不可点击
worker.postMessage({ file: file.value.raw })//发送文件给worker
worker.onmessage = (e) => {//监听worker的消息
handleCutSuccess(e.data)//处理切片成功
worker.terminate()//终止worker
}
}
// 切片文件成功
async function handleCutSuccess(data) {//处理切片成功
fileMd5.value = data.fileMd5//文件md5
fileChunkList.value = data.fileChunkList//文件切片列表
fileChunkHashList.value = data.fileChunkHashList//文件切片hash列表
chunkTotal.value = fileChunkList.value.length//切片总数
uploadFile()//上传文件
}
// 上传文件
async function uploadFile() {//上传文件
const data = await checkFile()//检查文件是否已经上传过
if (!data) return//如果文件已经上传过，则直接返回
const { chunk_upload, upload_id } = data//获取已上传的分片和上传id
uploadId.value = upload_id//设置上传id
if (chunk_upload.length === 0) {//如果文件没有上传过，则直接上传整个文件
// 上传整个文件
return await handleUploadRequest()
}
// 上传未上传的分片，过滤已上传的分片 - 断点续传
if (chunk_upload.length !== chunkTotal.value) {//如果有未上传的分片，则上传未上传的分片
uploadedSize = chunk_upload.length * DefaultChunkSize//已上传的大小
return await handleUploadRequest(chunk_upload)//上传未上传的分片
}
// 上传完成 - 秒传
store.dispatch('upload/setSampleUploading', false)//关闭上传弹框
modal.msgSuccess(t('upload.uploadedTip'))//提示上传完成
resetData()//重置数据
return true
}
// 检查文件是否已经上传过
async function checkFile() {
// 这个接口要配置防响应拦截
const params = {
filename: fileName.value,//文件名
file_hash: fileMd5.value,//文件md5
total_chunks: chunkTotal.value,//切片总数
}
const { code, msg, data } = await checkFileFn(params)//检查文件是否已经上传过
// 已经上传过返回对应hash值
if (code === 0) {//已经上传过
return data//返回数据
}
modal.msgError(msg)//提示错误
store.dispatch('upload/setSampleUploading', false)//关闭上传弹框
return false//返回false
}
// 处理分片文件的上传
function uploadChunk(chunk, index, fileMd5) {//处理分片文件的上传
const params = {//请求参数
chunk_id: index + 1,//分片id
file_hash: fileMd5,//文件md5
upload_id: uploadId.value,//上传id
chunk_hash: fileChunkHashList.value[index],//分片hash
}
const formData = new FormData()//创建formdata
formData.append('file_chunk', chunk)//添加分片文件
return {//返回请求
url: uploadUrl,//上传地址
method: 'post',//请求方式
timeout: 5 * 60 * 1000,//超时时间
data: formData,//请求参数
params,//请求参数
skipInterceptor: true,//跳过拦截器
headers: {//请求头
// 以前的人写了避免重复提交
repeatSubmit: false,//避免重复提交
},
onUploadProgress: (progressEvent) => {//上传进度
chunkUploadedSize[index] = progressEvent.loaded//设置已上传的大小
// 计算uploadedSize的总和
const size = Object.values(chunkUploadedSize).reduce((total, item) => {//计算已上传的大小
return total + item//已上传的大小
}, 0)
// 计算总的上传进度
uploadProgress = ((size + uploadedSize) / fileSize.value) * 100//计算总的上传进度
store.dispatch('upload/setProgress', uploadProgress)//设置上传进度
}
}
}
// 通过请求池的方式上传文件
async function handleUploadRequest(uploadedChunks = []) {//通过请求池的方式上传文件
const requestList = []//请求列表
for (let i = 0; i < fileChunkList.value.length; i++) {//遍历分片列表
if (uploadedChunks.indexOf(i + 1) === -1) {//如果当前分片没有上传过
requestList.push(uploadChunk(fileChunkList.value[i], i, fileMd5.value))//添加到请求列表
}
}
// 方法一：使用请求池的方式发送请求
await processRequests(requestList)
// 方法二：使用Promise.all一次性发送全部请求，uploadChunk需要返回request({})
// await Promise.all(requestList)
// // 上传完成后，合并文件
// await mergeFileFn({ upload_id: uploadId.value })
// return true
}
async function processRequests(requestList) {//处理请求
mapLimit(requestList, 3, async (reqItem) => {//并发请求
await request(reqItem)//发送请求
}, async (err) => {
if (err) {//请求失败
console.log('err: ', err)//打印错误
modal.msgError(t('upload.error'))//提示错误
store.dispatch('upload/setSampleUploading', false)//关闭上传弹框
resetData()//还原数据
return false//返回false
}
await mergeFileFn({ upload_id: uploadId.value })//合并文件
modal.msgSuccess(t('upload.success'))//提示成功
callback && callback()//回调
store.dispatch('upload/setSampleUploading', false)//关闭上传弹框
resetData()//还原数据
return true
})
}
// 上传成功，还原数据
function resetData() {
fileMd5.value = ''
fileChunkList.value = []
fileChunkHashList.value = []
chunkTotal.value = 0
uploadId.value = ''
uploadProgress = 0
chunkUploadedSize = {}
uploadedSize = 0
}
return {
file,
handleUploadChange,
handleCutFile,
handleCutSuccess,
uploadFile,
resetData,
}
}
export default useCutFile
组件
改成.vue
<template>
<el-dialog
v-model="visible"
:title="title"
:width="width"
append-to-body
class="common-center-dialog"
@close="emit('update:visible', false)"
>
<el-upload
ref="uploadRef"
:headers="getHeaders"
:limit="1"
:accept="accept"
:action="actionUrl"
:show-file-list="showFileList"
:before-upload="handleBeforeUpload"
:on-change="handleChange"
:on-success="handleSuccess"
:on-error="handleError"
:on-exceed="handleExceed"
:on-remove="handleRemove"
:auto-upload="autoUpload"
:disabled="loading"
drag
>
<el-icon class="el-icon--upload">
<upload-filled />
</el-icon>
<div class="el-upload__text">
{{ t('upload.drag') }}
<em>{{ t('upload.upload') }}</em>
</div>
<template #tip>
<div class="el-upload__tip text-center">
<span>{{ tipText || t('upload.onlyCsv') }}</span>
<span v-if="templateUrl || customDownload">
(<el-link
type="primary"
:underline="false"
style="font-size: 12px; vertical-align: baseline"
@click="handleDownload"
>{{ t('upload.downloadTemplate2') }}
</el-link>)
</span>
</div>
</template>
</el-upload>
<div class="content">
<slot />
</div>
<template #footer>
<div class="dialog-footer">
<el-button @click="emit('update:visible', false)">
{{ t('pub.cancel') }}
</el-button>
<el-button type="primary" :disabled="disabled" @click="handleConfirm">
{{ t('pub.sure') }}
</el-button>
</div>
</template>
</el-dialog>
</template>
<script setup>
import modal from '@/plugins/modal'
import { genFileId } from 'element-plus'
import { download } from '@/utils/request'
import { useI18n } from 'vue-i18n'
const { t } = useI18n()
const props = defineProps({
// 弹框参数
visible: {
type: Boolean,
default: false,
},
title: {
type: String,
default: 'Upload File',
},
width: {
type: String,
default: '450px',
},
// 上传参数
hasAuthorization: {
type: Boolean,
default: true,
},
// * 任意文件
accept: {
type: String,
default: '.csv',
},
action: {
type: String,
default: '',
},
showFileList: {
type: Boolean,
default: true,
},
autoUpload: {
type: Boolean,
default: false,
},
// 500MB
size: {
type: Number,
default: 500,
},
tipText: {
type: String,
default: '',
},
templateUrl: {
type: String,
default: '',
},
templateName: {
type: String,
default: 'template',
},
customDownload: {
type: Boolean,
default: false,
},
downloadMethod: {
type: String,
default: 'post',
},
autoSubmit: {
type: Boolean,
default: true,
},
})
const emit = defineEmits(['change', 'remove', 'success', 'error', 'submit', 'cut-success'])
const store = useStore()
const getHeaders = computed(() => {
if (props.hasAuthorization) {
return { Authorization: 'Bearer ' + store.getters.token }
}
return {}
})
const actionUrl = computed(() => {
return props.action ? `${ import.meta.env.VITE_APP_BASE_API }${props.action}` : ''
})
const loading = ref(false)
const uploadRef = ref()
const isAbort = ref(false)
const disabled = ref(true)
const fileObj = ref(null)
const handleBeforeUpload = (file) => {
if(isAbort.value) {
abort(file)
return
}
loading.value = true
}
const handleChange = (file) => {
const isLt = file.size / 1024 / 1024 < props.size
const allowedExtensions = (props.accept && props.accept !== '*') ? props.accept.split(',').map(item => item.substring(1)) : []
// 以第一个.后面的所有作为文件后缀
const tmp = file.name.split('.')
tmp.shift()
const fileExtension = tmp.join('.').toLowerCase()
if (!isLt) {
modal.msgError(`${t('upload.sizeLimit')}${props.size}MB!`)
isAbort.value = true
return false
}
if (allowedExtensions.length && !allowedExtensions.includes(fileExtension)) {
modal.msgError(`${t('upload.fileType')} ${allowedExtensions.join(', ')}`)
isAbort.value = true
return false
}
disabled.value = false
fileObj.value = file
emit('change', file)
return true
}
const handleRemove = () => {
disabled.value = true
emit('remove', null, null)
}
const handleSuccess = (res, file) => {
if (res.code && res.code !== 0) {
emit('change', null, null)
uploadRef.value.clearFiles()
modal.msgError(res.msg, 10000)
loading.value = false
return
}
modal.msgSuccess(t('upload.success'))
// 不知道为什么，这里触发的就算多级嵌套也能在父级接收到
emit('success', res, file)
emit('update:visible', false)
loading.value = false
}
const handleError = (err) => {
modal.msgError(t('upload.error'))
emit('error', err)
loading.value = false
}
const handleExceed = (files) => {
uploadRef.value.clearFiles()
const file = files[0]
file.uid = genFileId()
uploadRef.value.handleStart(file)
}
const handleDownload = () => {
if (props.customDownload) {
emit('download')
return
}
if (props.templateName.includes('.')) {
download(props.templateUrl, {}, props.templateName)
return
}
download(props.templateUrl, {}, `${props.templateName}${props.accept}`, props.downloadMethod)
}
const handleReset = () => {
uploadRef.value.clearFiles()
}
const handleConfirm = () => {
if (props.autoSubmit) {
uploadRef.value.submit()
} else {
emit('submit', uploadRef.value, fileObj.value)
}
}
defineExpose({
handleReset,
})
</script>
<style scoped lang="scss">
.content {
margin-top: 18px;
}
</style>
上传s3
上传s3
